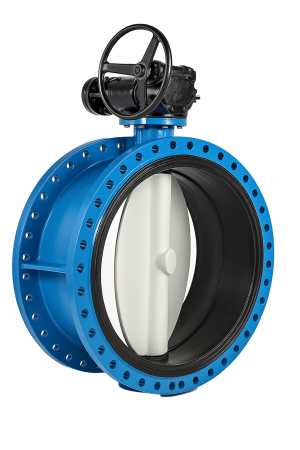

Concentric Butterfly Valves
“Our resilient seated butterfly valves are with integrally mounted elastomer body liners, which provides effective seating with excellent flow efficiency with no maintenance and FIT & FORGET design . ”
Resilient seated Concentric Butterfly Valves are quarter turn valves, fully rubber covered internal body designed in accordance with EN/ISO/ standards to handle applications in potable water etc. The valve is coated with fusion bond epoxy powder internally and externally to protect from exposure to corrosion.
SPECIFICATIONS
Size range: DN 50 to DN 1800
Working Pressure: 10 bar & 16 bar
Standards Compliance
Design: EN 593 / EN 1074-1 & 2
Face to Face: EN558 Series 13 & 20
Flange Connection: EN 1092-2 PN10 , PN16 &
ASME B16.5 (#150)
Testing: EN 12266-1&2 / EN 1074-1 2 /API 598
Seat Test: 1.1 x PN
Shell Test: 1.5 x PN
Coating: Fusion Bond non-toxic epoxy coated
Optional features: Hand Lever,
Gear Operated, Electric Actuator Operated
Models
VCB13: EN 558 Series 13
VCB20: EN 558 Series 20
