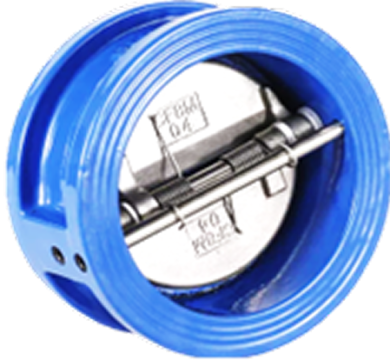

Dual Plate Check Valves
"Resilient seated dual plate check valve designed in accordance with EN/ISO/API standards to handle applications in potable water."
Resilient seated dual plate check valve designed in accordance with EN/ISO/API standards to handle applications in potable water. The valve allowing flow in one direction and automatically preventing flow in the reverse direction. The valve is coated with fusion bond epoxy powder internally and externally to protect from exposure to corrosion.
Specifications
Size range: DN 50 to DN 1200
Working Pressure: 10 bar & 16 bar
Standards Compliance
Design: EN12334 / API 594
Flange Connection: EN 1092-2 PN10/16
ASME B16.5 (#150)
Testing: API 598 / EN 12266-1 /ISO5752
Seat Test: 1.1 x PN
Shell Test: 1.5 x PN
Coating: Fusion Bond non-toxic epoxy coated
Optional features: Completely self automated and do not require human interaction.
Alternative Flanges Drilling
Wafer Type
Materials
Body: Ductile Iron
Seat: EPDM
Disc / Plate: Ductile Iron
Hinge / Shaft: Stainless Steel
