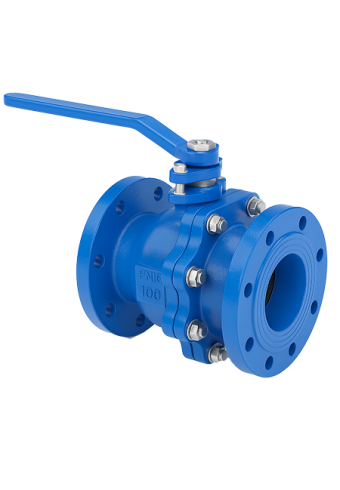

Ductile Iron Ball Valves
"soft seated Floating Ball Valves are quarter turn valves designed in accordance with EN/ISO/DIN/API standards and to meet the high Quality requirements."
soft seated Floating Ball Valves are quarter turn valves designed in accordance with EN/ISO/DIN/API standards and to meet the high Quality requirements. Floating Ball Valves are offered in full port construction to minimize the pressure loss. The valve is coated with fusion bond epoxy powder internally and externally to protect from exposure to corrosion
Specifications
Size range: DN 15 to DN 600
Working Pressure: 10 bar & 16 bar
Standards Compliance
Design: ISO 17292
Flange Connection: EN 1092-2 PN10/16
Face to Face: EN 558
Testing: EN 12266-1 & 2 / API 598
Seat Test: 1.1 x PN
Shell Test: 1.5 x PN
Coating: Fusion Bond non-toxic epoxy coated
Optional features: Hand lever, Gearbox,
Electrical Actuator,
Alternative Flange Drilling
Materials
Body: Ductile Iron / Stainless Steel
Connector: Ductile Iron / Stainless Steel
Seat: PTFE
Ball: Stainless Steel
