"partnering with innovation and perfection"
VME Valves Factory LLC
ISO 9001: 2015 Company
Flap Valves
" Our flap check valve is used as protection against reverse flow and installed in pumping application. outstanding operational performance, exceptional reliability and durability "

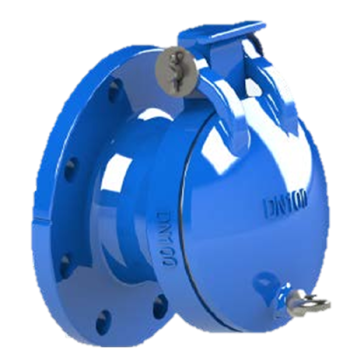

VME Flap check valve is a top-hinged designed in accordance with EN/IS standards to handle applications in potable water sewage, storm water etc. The valve allowing flow in one direction and automatically preventing flow in the reverse direction.
SPECIFICATIONS
Size range: DN 50 to DN 1000
Working Pressure: 10 bar & 16 bar
Standards Compliance
Flange Connection: EN 1092-2 PN10/16
Coating: Fusion Bond non-toxic epoxy coated
Optional features: Self actuating device, Alternative Flange Drilling
Models
VFC01: Flanged Ends, EN1092 10/16 & ANSI
Materials
Body: Ductile Iron
Seat: Metal / EPDM
Cover: Ductile Iron
Shaft: Stainless Steel
Features
•Effective backflow prevention device.
•Full perimeter sealing.
•construction is lightweight.
•water control check are custom sized to ensure they meet.
•specific site and operational requirements.
•Customization reduces installation costs.
•Sealing metal/rubber.
•On request, counterweight can be provided.
•Lifting eye as standard.
• Full bore & Low cracking heads.
